Automated Welding Head: Precision, Cooling and Real-Time Inspection
Executive summary: Maedcore designed an automated welding head for advanced welding machines, simultaneously solving three critical problems: torch overheating during prolonged sessions, the inability to monitor welding progress without direct heat exposure, and inconsistency in high-demand repetitive processes. The solution integrates an active torch cooling system, a high-temperature-resistant inspection screen and an automated control system with dynamic adjustment algorithms. The result: more precise welds, safer operators and faster processes.
The Context: The Demands of High-Precision Industrial Welding
Automated welding in sectors such as automotive, aerospace or infrastructure construction is not a simple process of joining metals. It is a precision engineering process where every millimetre and every degree of temperature matters. A defect in a car chassis weld or a structural joint on a bridge can have critical consequences.
Industrial welding equipment faces three recurring problems that limit its performance:
- Torch overheating in long sessions, which deteriorates weld quality and shortens equipment lifespan.
- Inability to inspect progress in real time without bringing the operator close to high-temperature and high-risk zones.
- Parameter inconsistency (speed, angle, intensity) in repetitive processes performed manually.
The Solution: Three Innovations Integrated into One Welding Head
Innovation 1: Active Torch Cooling System
The welding head includes an integrated cooling system that circulates coolant around the torch throughout the process. This system maintains the torch within an optimal operating temperature range regardless of the duration of the welding session.
The benefits are multiple:
- Elimination of overheating as a limiting factor for session duration.
- Maintenance of weld bead precision during long sessions (accumulated heat without cooling causes deviations in torch positioning).
- Greater torch durability and reduced maintenance and replacement costs.
Innovation 2: Heat-Resistant Inspection Screen

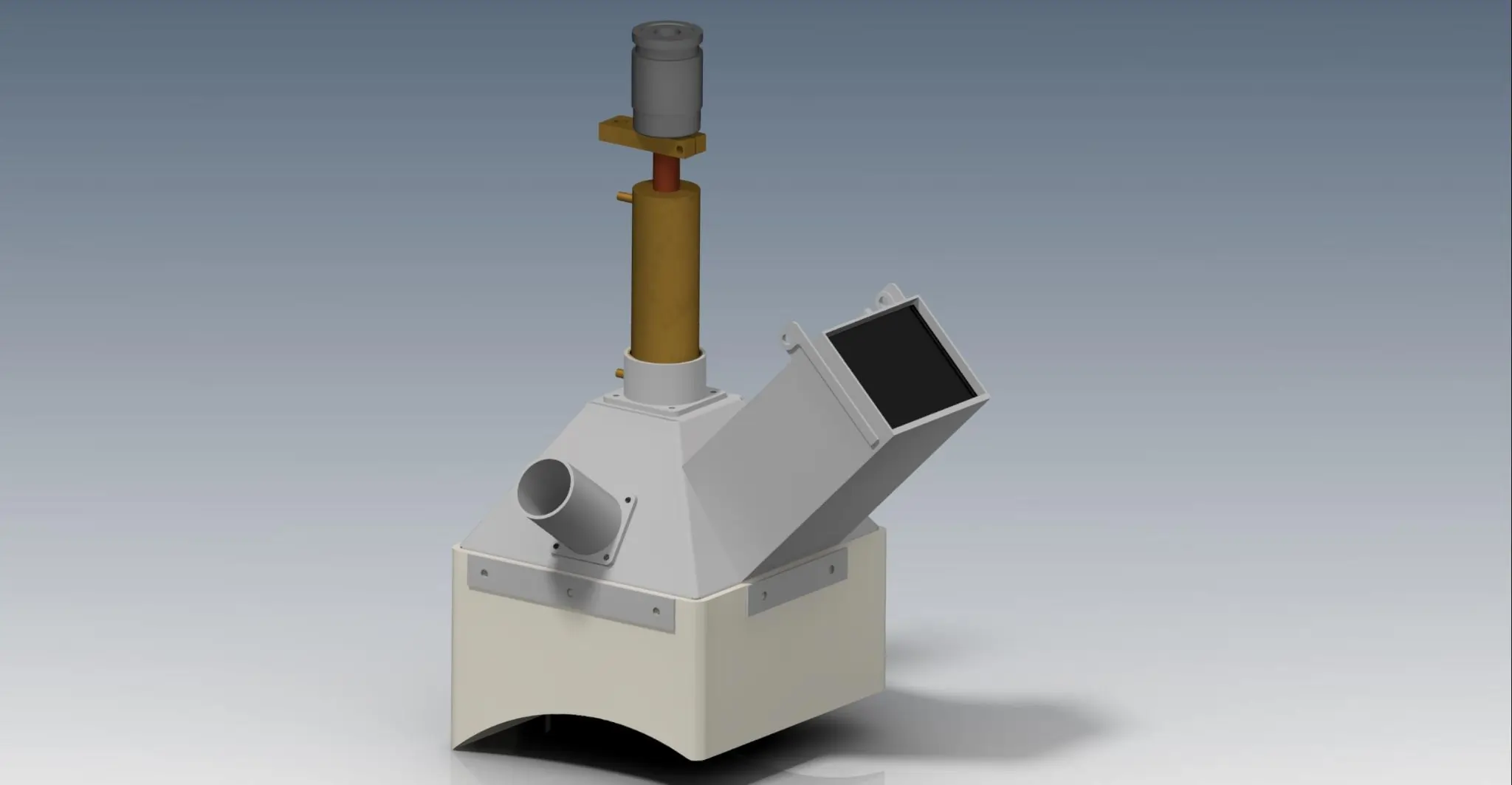

The head integrates a display screen manufactured with high-temperature-resistant materials that allows the operator to monitor welding progress in real time without needing to approach the work zone.
The screen shows:
- Real-time welding status (bead position, active parameters).
- Torch and cooling system temperature.
- Parameter deviation alerts.
- Camera view of the welding zone.
This radically transforms the safety dynamic: the operator can supervise a high-temperature process from a safe distance, with complete visual information about what is happening.
Innovation 3: Automation and Adaptive Control
The welding head is fully automated via control algorithms that dynamically adjust the three critical parameters of the process:
- Travel speed of the torch according to joint type and material.
- Torch angle to optimise penetration and bead finish.
- Welding current intensity based on real-time material conditions.
The modular design of the head allows it to be adapted to different types of welding machines — MIG, TIG, arc — expanding its versatility across diverse industrial environments.
Quantified Benefits
| Parameter | Impact |
|---|---|
| Bead quality | Reduction of defects (cracks, porosity) thanks to controlled parameters |
| Operational safety | Remote monitoring eliminates direct operator heat exposure |
| Torch durability | Active cooling extends lifespan and reduces maintenance frequency |
| Process consistency | Automation ensures identical reproducibility in every weld |
| Speed | Higher travel speed possible without quality deterioration |
Application Sectors
Automotive industry: welding of chassis, bodywork and structural components with high-production consistency requirements.
Aerospace industry: high-demand metal joints in structures requiring certification and welding process traceability.
Structural engineering and infrastructure: welding of load-bearing elements in bridges, buildings and industrial metal structures.
Naval manufacturing: metal structure joints in high-humidity and high-temperature environments.
Technologies Used
Project developed with: Mechatronics — Robotics — Embedded Systems — Artificial Intelligence — Industrial Automation
